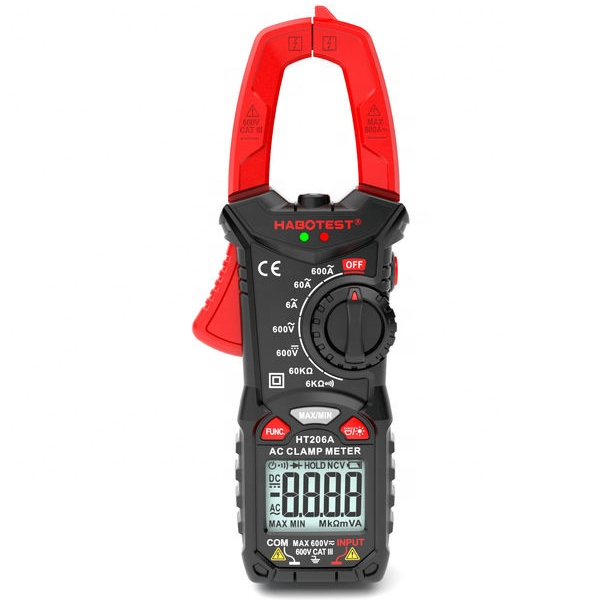

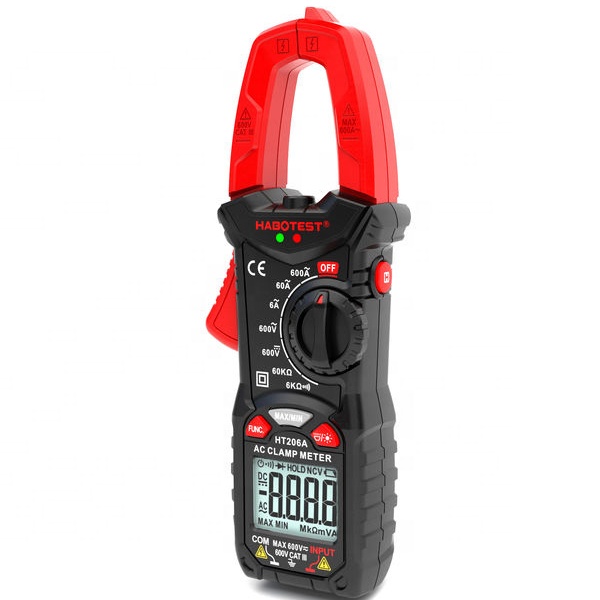

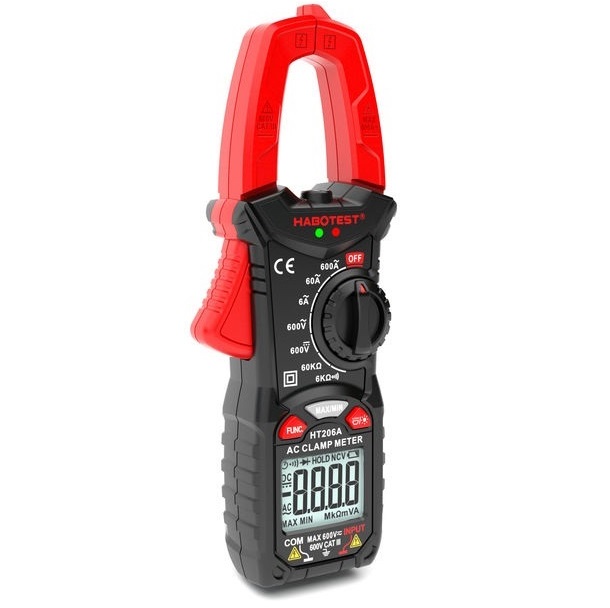

HT206A Digital Clamp Meter
Features
This DC/AC Clamp meter is updated version of all kind of similar models in the market, it features DCA ZERO,Diode Test, Continuity, , Data hold, TRUE RMS LPF Max/MIN , LowZ etc. functions with high accuracy and easy operation face.
HT206A/B/D Digital clamp meter
|
Function |
Range |
Accuracy |
|
HT206A |
HT206B |
HT206D |
|
DC Voltage |
600V |
±(0.5%+3) |
|
|
|
600mV/6V/60V/600V/600V |
|
±(0.5%+3) |
±(0.5%+3) |
|
AC Voltage |
600V |
±(1.0%+5) |
|
|
|
6V/60V/600V/600V |
|
±(1.0%+3) |
±(1.0%+3) |
|
DC Current |
6A/60A/600A |
|
|
±(2.5%+5) |
|
AC Current |
6A/60A/600A |
±(2.5%+5) |
±(2.5%+5) |
±(2.5%+5) |
|
Resistance |
6kΩ/60kΩ |
±(1.0%+3) |
|
|
|
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
|
±(1.0%+3) |
±(1.0%+3) |
|
Capacitance |
10nF/100nF/1μF/10μF/100μF/1mF/10mF/100mF |
|
±(4.0%+3) |
±(4.0%+3) |
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
|
±(0.5%+5) |
±(0.5%+5) |
|
Duty |
1%~99% |
|
±(1.0%+2) |
±(1.0%+2) |
|
Temperature (°C/°F) |
-40°C~1000°C |
|
±(1.0%+2) |
±(1.0%+2) |
|
-40°F~1832°F |
|
±(1.0%+2) |
±(1.0%+2) |
|
|
|
|
|
|
|
|
|
|
|
|
Counts |
6000 counts |
6000 counts |
6000 counts |
|
Auto/Manual range |
Manual |
Auto |
Auto |
|
Continuity |
√(sound and light alarm) |
√(sound and light alarm) |
√(sound and light alarm) |
|
Diode test |
|
√ |
√ |
|
Data Hold |
√ |
√ |
√ |
|
NCV |
|
√(sound and light alarm) |
√(sound and light alarm) |
|
Back light |
√ |
√ |
√ |
|
Flashlight |
√ |
√ |
√ |
|
DCA ZERO |
|
|
√ |
|
Low battery indication |
√ |
√ |
√ |
|
Auto power off |
√ |
√ |
√ |
|
True RMS |
|
√ |
√ |
|
LPF |
|
√ |
√ |
|
MAX/MIN |
√ |
√ |
√ |
|
LowZ |
|
√ |
√ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power |
2xAAA(1.5V)Batteries |
|
Weight |
|
|
Size |
|
|
Safety Rating |
EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 600V |
|
|
|
|
|
|
|
